Global 2020 Folding Arm Awning

The Global 2020 is a compact folding arm awning, which sits snugly against the wall giving an unobtrusive appearance.  With a maximum projection of 4.1m, this is a versatile awning which can achieve a maximum coverage.

5 Year product hardware warranty.

Usage and Maintenance Manual Brochure

Features

  • 40mm x 40mm Square Bar
  • 78mm Galvanised Roller Tube with welded stream for added strength
  • 11:1 Gear-box is standard – Awnings over 6m in width should be motorized
  • Compact Design which sits closer to the wall
  • Projection from 1.6m to 4.1m
  • Width from 2.01m to 12m
  • Heavy Duty Arms with Stainless Steel Chain
  • Styled heavy extruded front bar
  • Pitch adjustment at installation can be set up to 55 degrees
  • Extendable Front Valance is available as an option (up to 1.2m drop for hemmed acrylic and 2m for unhemmed acrylic)

Colour Options

Colour options are White, Ivory, Silver Grey and Anthracite Texture.  Other Dulux Duralloy standard or Interpon Texture standard powder-coat colours are available at an additional cost.

WHITEANTHRACITEIVORYSILV/GREY

Wind Rating

Awnings up to 3.6m projection - Wind Class 2 (European)/Beaufort Force 5 (Australian).  Maximum wind speed 37kph.

Awnings with 4.1m projection - Wind Class 1 (European)/Beaufort Force 4 (Australian).  Maximum wind speed 27kph.

Specifications

Width 2.01m ↔ 12m

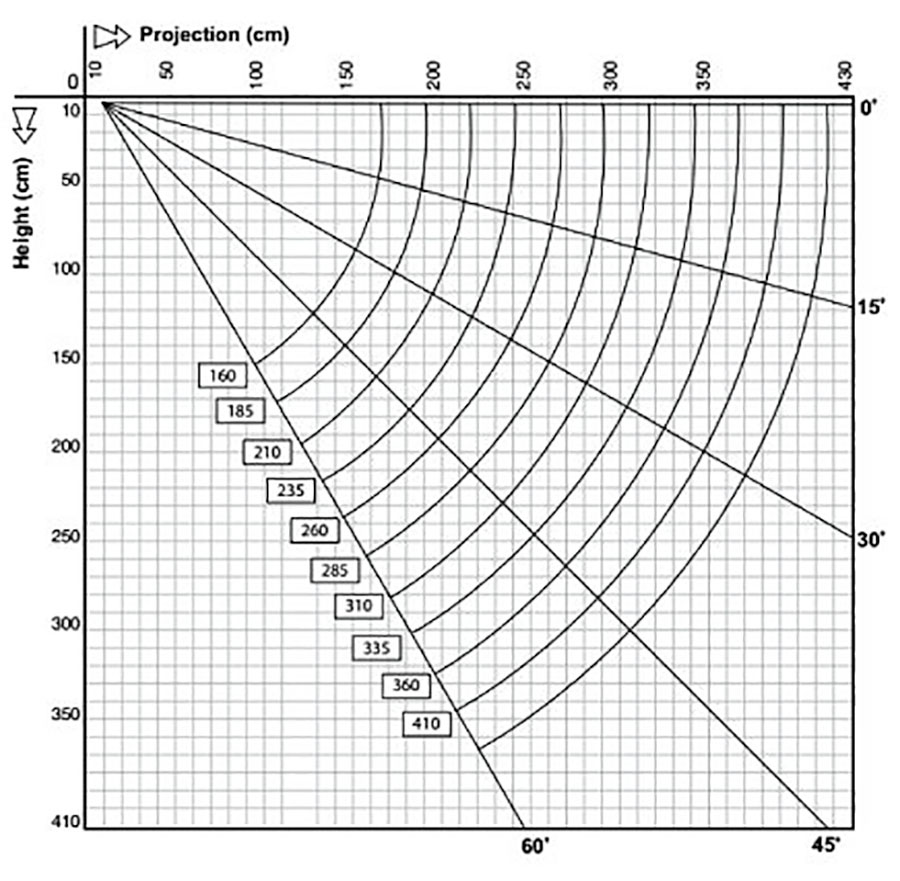

Projection 1.6m, 1.85m, 2.1m, 2.35m, 2.6m, 2.85m, 3.1m, 3.6m, 4.1m


Global 2020 Wall Fix installation with standard bracket


Global 2020 Wall Fix installation with heavy duty bracket


Global 2020 Ceiling Fix installation with heavy duty bracket


Face/Wall Fix US400 Bracket


Product Options

Somfy Motors

Altus 50 RTS 40/17 for 2 arm awning

Altus 50 RTS 50/12 for 3 & 4 arms up to 2.1m projection

Altus 60 RTS 55/17 for 3 & 4 arms over 2.1m projection

Extruded Aluminium Hood & Wider Front Bar

For awnings up to 7m wide


Top Fix Brackets

Global 2020 Top/Ceiling Fix Bracket (can also be used as a Face/Wall Fix Bracket or Hood Bracket)


Motion/Wind Sensor

* Somfy Eolis 3D Motion Sensor in White, Black or Ivory

* Eolis Sensor RTS in White


Fascia 10 & 22 degree brackets

Rafter brackets 125mm or 200mm

Global 2020 Hood Bracket (for Standard Awning, not Semi-Cassette)


Extendable Front Valance

Available for awnings up to 6m in width.  Drop up to 1.2m using hemmed acrylic fabric and 2m using unhemmed acrylic fabric.


Integrated LED Lighting Kit

Integrated Arms with LED Lighting.  Available in 2.6m, 3.1m and 3.6m projection.

Kit price includes 120w 12v transformer, LED Strip ip64 5000k, connectors and wiring.   Only available for 2 arm awnings.

Photo courtesy of Coolabah Shades Melbourne

Photo courtesy of Lifestyle Awnings and Blinds Melbourne

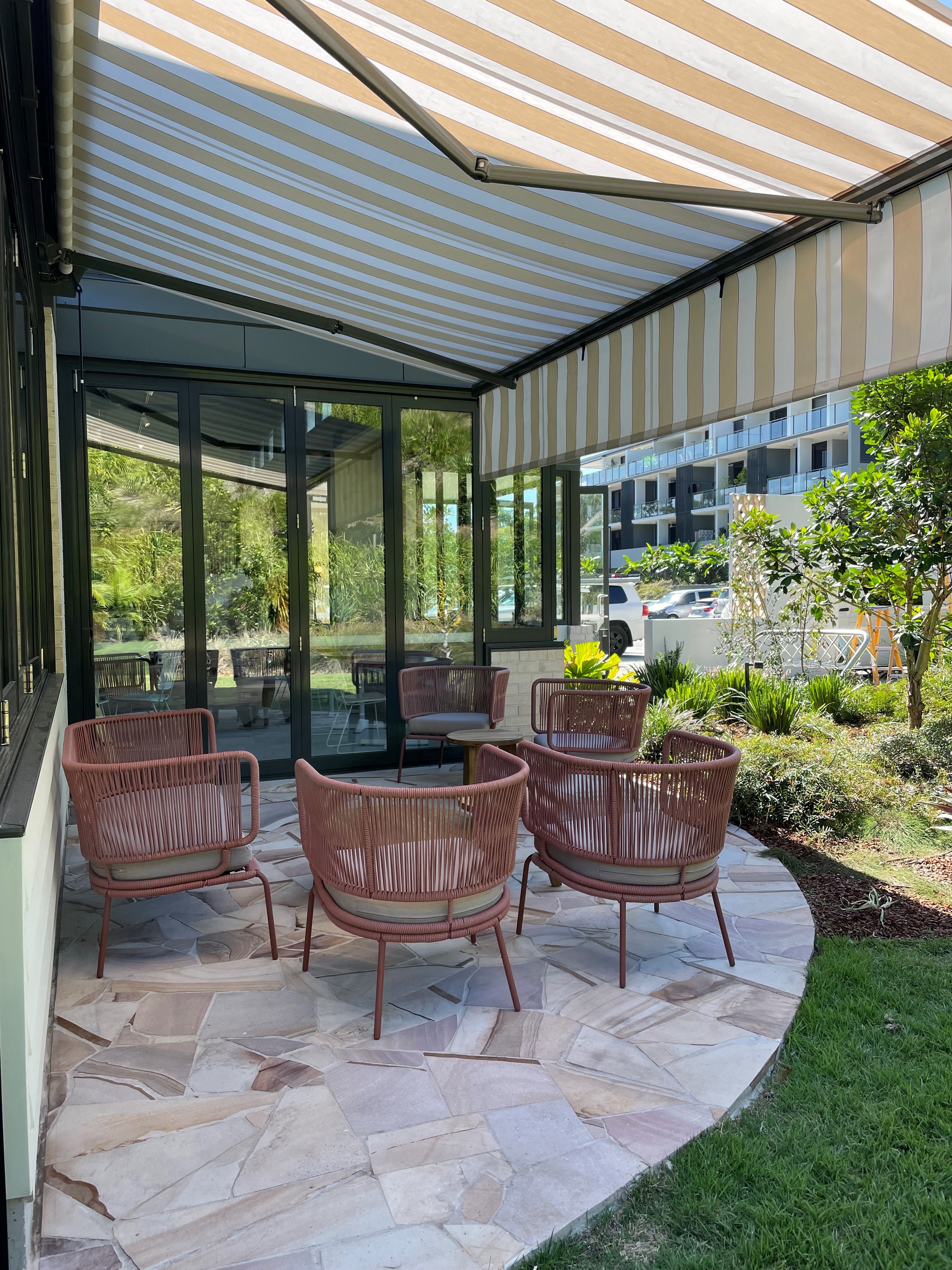

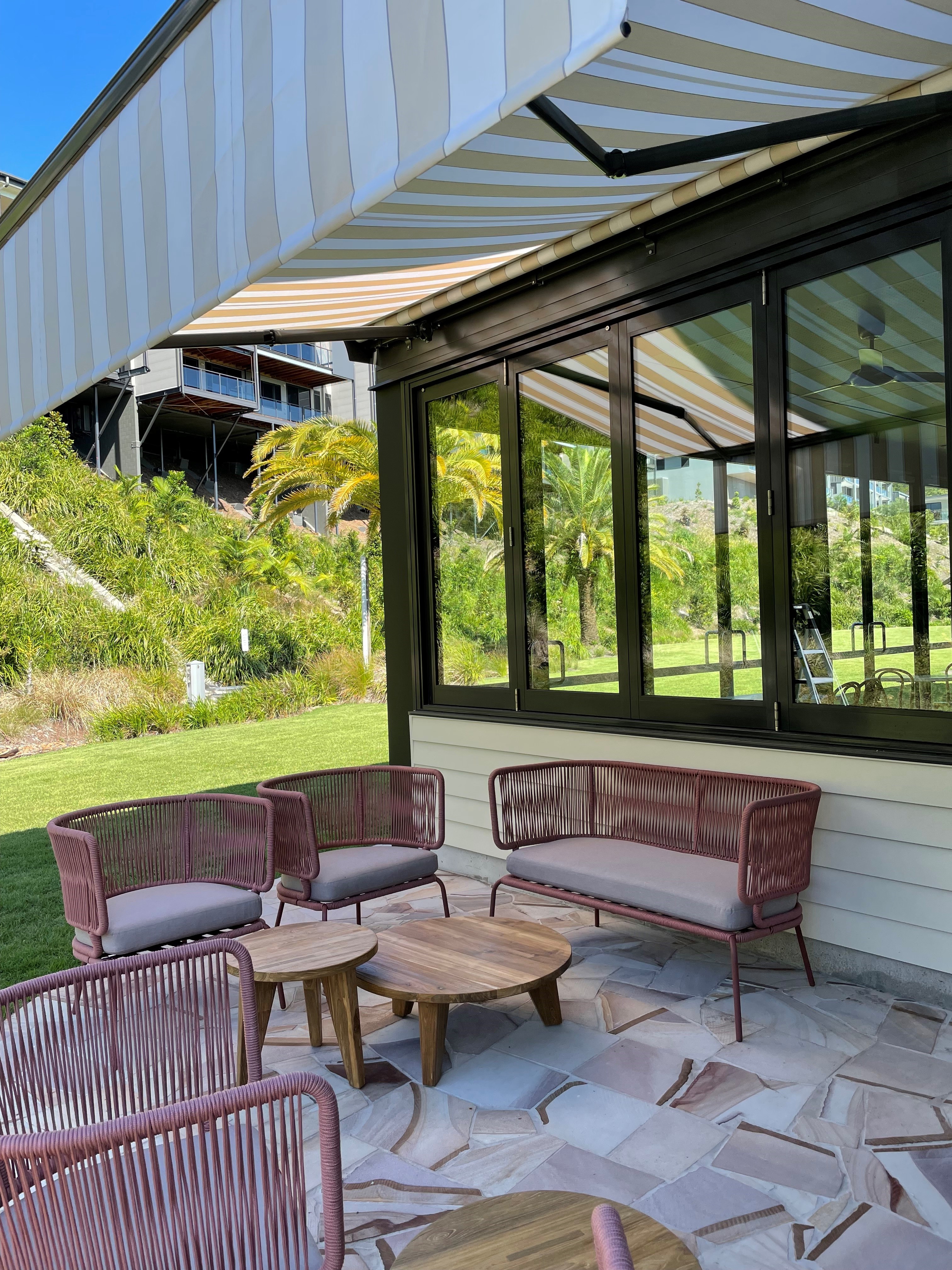

Photo Courtesy of Jan Murphy Inside and Outside Designs Noosaville
