Screeny Fabric Tension Zip System

The SCREENY 130 Fabric Tension Zip System is one of our premium products, which offers the ultimate in sun protection.  This can be used both as vertical and horizontal application, and is designed for the fabric to be taut at all times while the front bar is in motion.

5 Year product hardware warranty.

Usage and Maintenance Manual Brochure

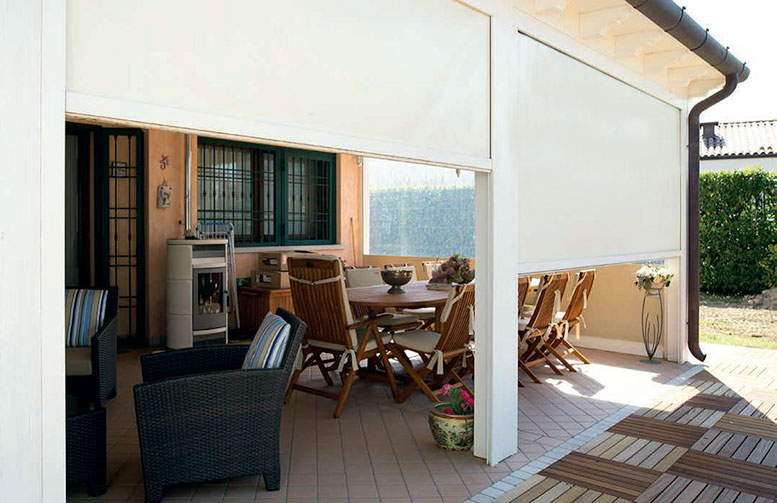

The SCREENY 130 range has been designed to keep the sun off your windows thus reducing the heat in your office or home. It is also great for those patio and decking areas where you want to sit and enjoy the outdoors without the blistering heat.  Depending on the choice of fabric, SCREENY 130 can provide a panoramic view of your garden with see through fabrics, or offer a near block-out condition with room darkening qualities – these choices depend on fabric selection (not suitable for Clear PVC).


  • Screeny 130 is designed to fit windows, niche and other vertical appplications, and over glass roofs or pergolas, to assist in heat reduction by shading the glass or the deck. It is good for windy areas such as high rise apartments or close to the beach.
  • Designed for the fabric to be taut at all times while the front bar is in motion
  • Aluminium powder-coated 130mm x 130mm headbox which offers grace and style to complement every home or office complex
  • Extruded aluminium powder-coated 60mm side channel to match the headbox
  • Uses a 78mm keyway tube
  • Vertical Application – 5m wide x 4m projection, 4.5m wide x 4.5m wide projection, or 4m wide x 5m projection
  • Horizontal application – 4m wide x 5m projection
  • Twin Models are available – each has its own motor and is operated independently.  Maximum Twin Unit size is 10m wide x 4m projection, 9m wide x 4.5m projection, or 8m wide x 5m projection for Vertical applications, or 8m wide x 5m projection for Horizontal application.
  • This product is only available motorised using a Somfy motor (requires a special motor bracket)
  • Several different fixing brackets are available as options:
    • Cassette Headbox mounting brackets
    • Side Channel fixing brackets
    • Adjustable Cassette Headbox mounting brackets (used with Cassette Headbox mounting brackets)
    • Side Adjustable brackets
    • Extra Height bracket

Colour Options

Standard Dulux Duralloy or Standard Interpon Textura powder-coat colours are included in the price

Wind Rating

Vertical Application

Wind Class 2 (European)/Beaufort Force 5 (Australian)

Maximum wind speed of 27kph

Horizontal Application

Wind Class 1 (European)/Beaufort Force 4 (Australian)

Maximum wind speed of 27kph



Width 1m ↔ 5m

Drop 1m ↔ 5m

(5m wide x 4m projection, 4.5m wide x 4.5m wide projection, or 4m wide x 5m projection)


Width 1m ↔ 4m

Projection 1m ↔ 5m

Product Options

Somfy Motors

Altus 50 RTS 40/17 for awnings up to 3m drop/projection

Altus 50 RTS 50/12 for awnings over 3m drop/projection

Standard Guide Fixing Brackets with height adjustment 80mm - 100mm

Cassette Head-box Mounting Brackets

Adjustable Cassette Headbox Mounting Brackets (use with Cassette Headbox Mounting Brackets)

Pitch Adjusting Fixing Brackets (use with Height Extension Profile maximum height 280mm)

Extra Height Profile  (use with Standard Guide Fixing Brackets - maximum height 220mm)

Sideways Adjustable Fixing Brackets (for side shifting the fixing points of the tracks)
