Verso Full Cassette and No Headbox Drop Arm Awnings

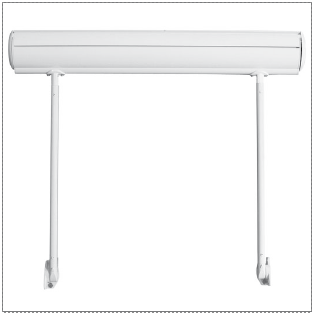

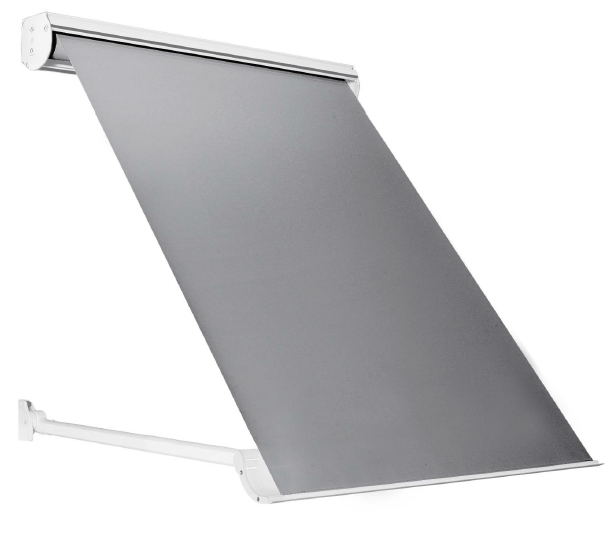

The Verso Full Cassette Awning is beautifully styled, and offers customers full protection for their chosen fabric by enclosing it in the cassette box.
5 Year product hardware warranty.
Usage and Maintenance Manual Brochure

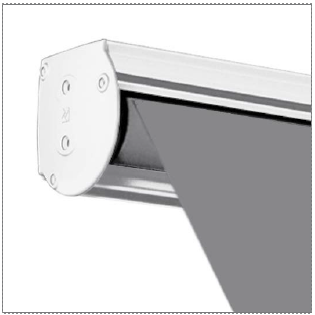

The Verso Full Cassette model uses spring loaded arms to ease the fabric back into the fully enclosed cassette. The operation of the awning is both smooth and effortless. As the awning closes, the sculptured bottom rail fits snugly into the top cassette box, to form a weather-proof enclosure to protect the fabric.

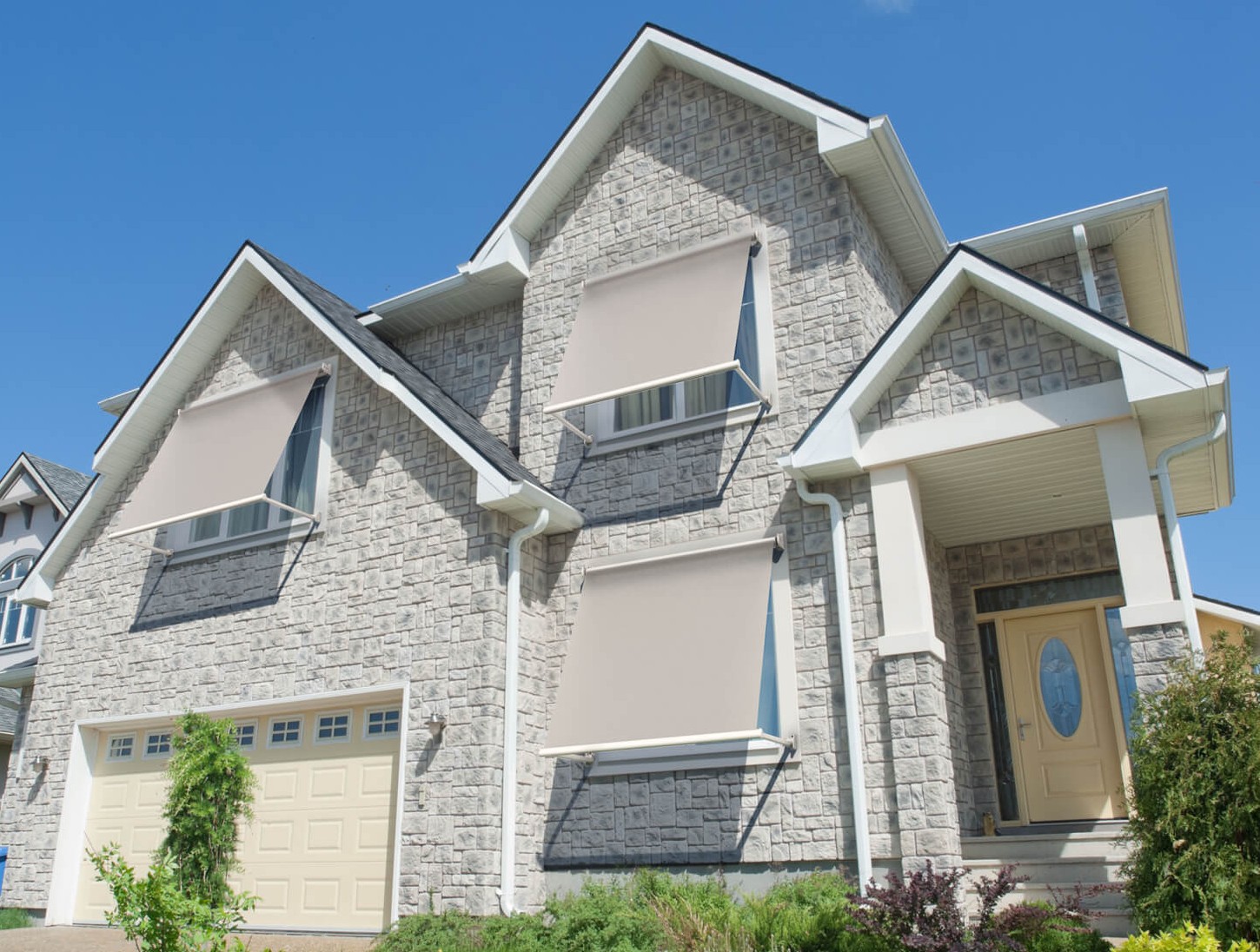

The style of the Verso awning can also be seen without the Full Cassette features. Using the same spring-loaded arms, and a different bottom rail, the Verso Spring Arm Awning with no headbox can be manufactured to suit most window sizes.
Features - Verso Full Cassette Model
- o Full Cassette model offers protection for the fabric by enclosing it in the cassette box.
o The cassette head-box, bottom rail, mounting brackets and spring-loaded arms are made from aluminium, and powder-coated to enhance the appearance of the awning.

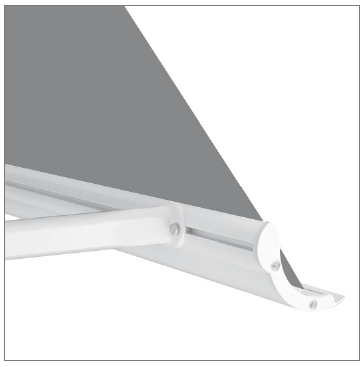

o Unique fully closing Bottom Rail.
o Can be Wall/Face Fixed or Top/Ceiling Fixed.
o Manual or motorised operation.
o 7:1 Gearbox is standard.
o 70mm Galvanised Roller Tube with Welded Seam for added strength.
o Arms sizes from 700mm - 1600mm to suit drops from 1200mm - 3000mm.
o Maximum width 5m.
o Easy and quick installation.
Features - Verso No Headbox Model
- o Open style awning.
o The Spring-Loaded Arms and Bottom Rail are made from extruded aluminium and are powder coated.
o The 80mm universal fixing brackets are standard.
o Can be Wall/Face Fixed or Top/Ceiling Fixed.
o Manual or motorised operation.
o 7:1 Gearbox is standard.
o 70mm Galvanised Roller Tube with Welded Seam for added strength.
o Arms sizes from 700mm - 1600mm to suit drops from 1200mm - 3000mm.
o Maximum width 5m.
o Easy and quick installation.
Colour Options
Standard Dulux Duralloy or Standard Interpon Textura powder-coat colours are included in the price
Wind Rating
Wind Class 2 (European)/Beaufort Force 5 (Australian)
Maximum wind speed of 37kph
Specifications
Width 1m ↔ 5m
Arm Size 0.7m ↔ 1.6m (can be cut to any size)
Drop 1.2m ↔ 3m

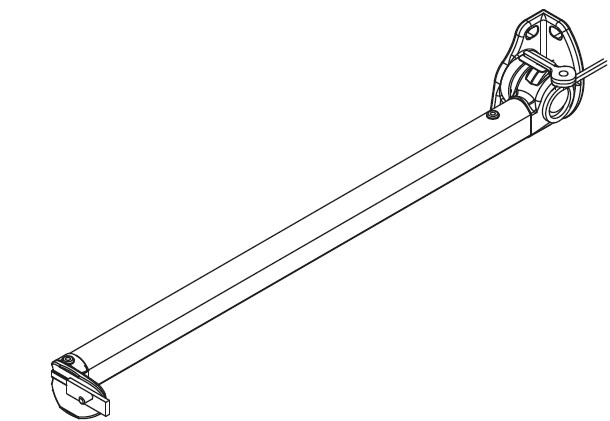

Verso Arms

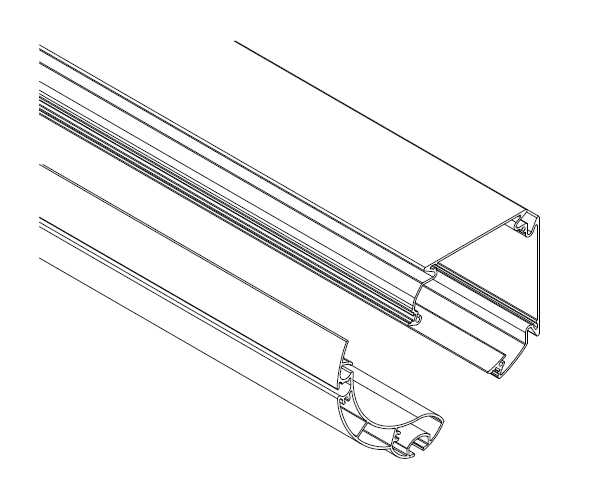

Verso Cassette Headbox & Bottom Rail Profile
.png)
Wall/Face Fix
Ceiling/Top Fix
Product Options
Somfy Motors
Full Cassette Model - Orea 50 RTS 25/17
No Headbox Model - Altus 50 RTS 25/17
